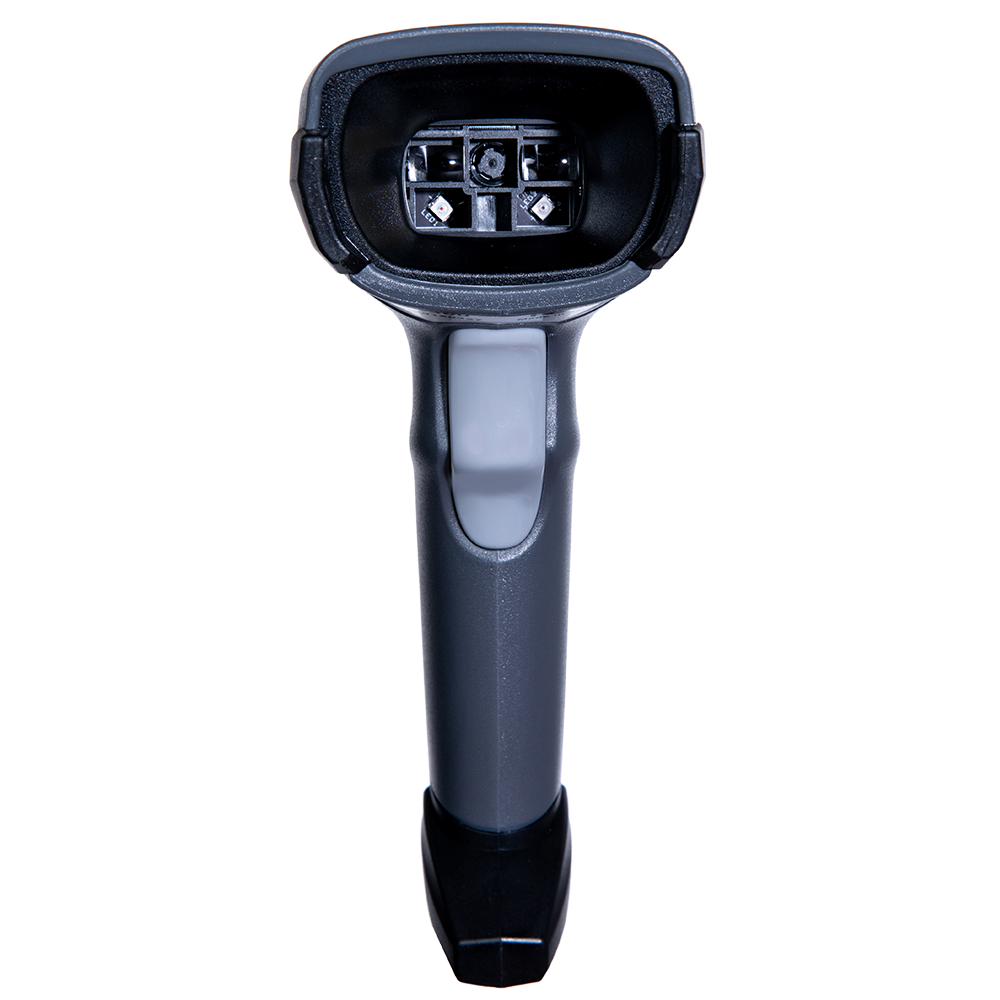

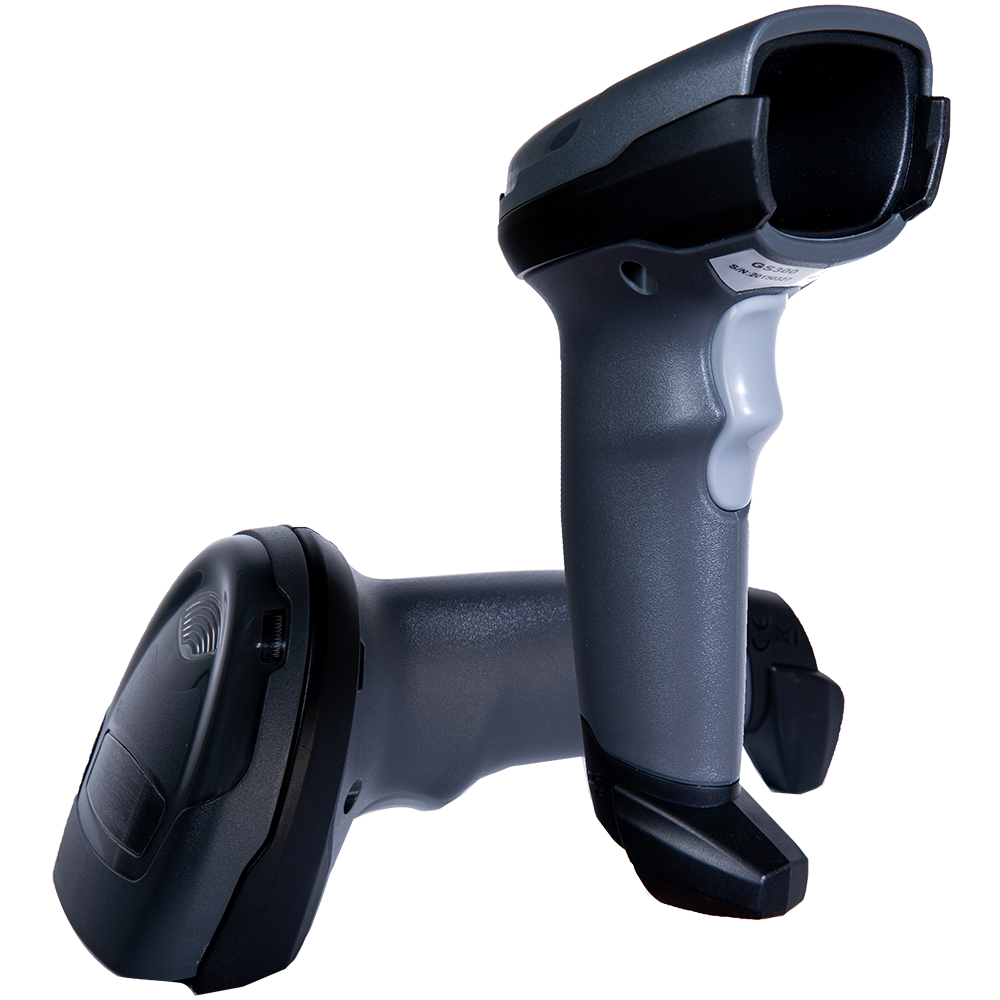

GS300 2D Scanner

The GS300 2D Scanner combines top decoding technology with a new generation of imaging systems to provide the industry's widest barcode support range and ultra-fast scanning performance. Equipped with intelligent auxiliary aiming and lighting systems, it greatly improves operational convenience and can easily decode even highly distorted barcodes. It has a 1.5-meter drop resistance and IP42 protection level, and its structure is sturdy and reliable.

2D Barcode

Feature

· Top decoding library, the widest barcode support coverage.

· New generation imaging technology, greatly speeding up your scanning.

· Intelligent auxiliary aiming and lighting system, easier to use experience.

· Excellent performance, easily decrypt highly distorted barcodes.

· The most reliable structure, 1.5 meters drop resistance and IP42 protection level.

Specification

Scanning Parameter

Image Sensor Pixel Illumination Focus

CMOS
640x480
Infrared LED
Infrared LED

Symbologies

2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode, Postal Codes etc.
1D: Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14, RSS-Limited, RSS-Expand etc.

Resolution

≥3mil

Typical DOF

5mil Code39: 20mm‒150mm
6.7mil PDF417: 25mm‒130mm
10mil DM: 15mm‒100mm
13mil EAN: 30mm‒300mm
20mil QR: 15mm‒210mm

Recognition Sensitivity

Pitch±60º Tilt360º Skew±60º

FOV

Horizontal: 32 °, vertical: 25 °

Symbol Contrast

≥20%

Physical Parameter

Dimension(mm)

83（D）*67（W）*175（H）

Weight

128g

Scanner Interface

RJ-45 crystal head

Housing Materials

PC+TPU

Notification Interfaces

Buzzer , LED Indicator RS-232 Serial Port , USB , USB Virtual Serial Port

Trigger Method

Manual keystroke , induction recognition , continuousrecognition

Electrical Parameter

Operating Voltage

5VDC±10%

Operating Current Power

Standby：100mA；Work：230mA
Standby：0.5W； Work：1.15W

Environment Parameter

Operating Temperature

-20 ℃ ~ +50℃

Storage Temperature

-40℃ ~ +70℃

Relative Humidity

5%~95%（No Condensation）

ESD

±15 kV Air Discharge， ±8 kV Direct Discharge

Anti-shock Ability

1.5 m

Protection Grade

IP42

Certification

CE , FCC , RoHS

Cable

USB : use to connect the scanner to the information receiving host
RS-232 : use to connect the scanner to the information receivinq host

AC Adapter

5V , coordinate with RS-232 cable to power the scanner

Test Condition

Environment temperature: 23°C
Environment illumination: 300LUX filament lamp
DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
